2521 Automatic Balancing Batch Spin Dryer—Sd50lt
Introducing the newest, most advanced PATENTED mini dryer available! Popular Spin Dryer for fresh cut vegetables used by many processors.
Drying-Centrifugal
Features
- Automatic Product Balancing Start-Up Sequence; Reduces damage caused by unbalanced loads.
- Ultra-Light 32 gallon plastic basket system.
- Pairs with the Cyclone basket which is made with metal detectable and FDA approved material.
- Easy-open lid with full view window and OSHA compliant safety sensor.
- Canted basket carrier allows for easy loading and unloading. Lowest basket lift height.
- Self-contained controls with dynamic braking and 4 available drying times.
- Easy-access drive components with extra heavy-duty, high impact strength and high wear resistant 3B Polyband belt.
- Fully contained discharge water recovery port for low slope floors.
- Available with a Safety Lid Lock Upgrade
- An optional Rear Access Door is available for enhanced sanitation access.
- Optional Isolation Base Plate to raise dryer off of the floor and absorb vibration.
Specifications
- Spin Dry Time: 1, 1-1/2, 2, and 3 minutes
- Basket Capacity: 32 gallons
- Load Weight: 50lbs.
- Cycles/Hour: 20
- Capacity/Hour: 1,000lbs.
- Drive: 1.5 HP Electric Motor (480V or 230V)
Products
Lettuce | Celery | Broccoli | Peppers | Spring Mix | Onions | Spinach

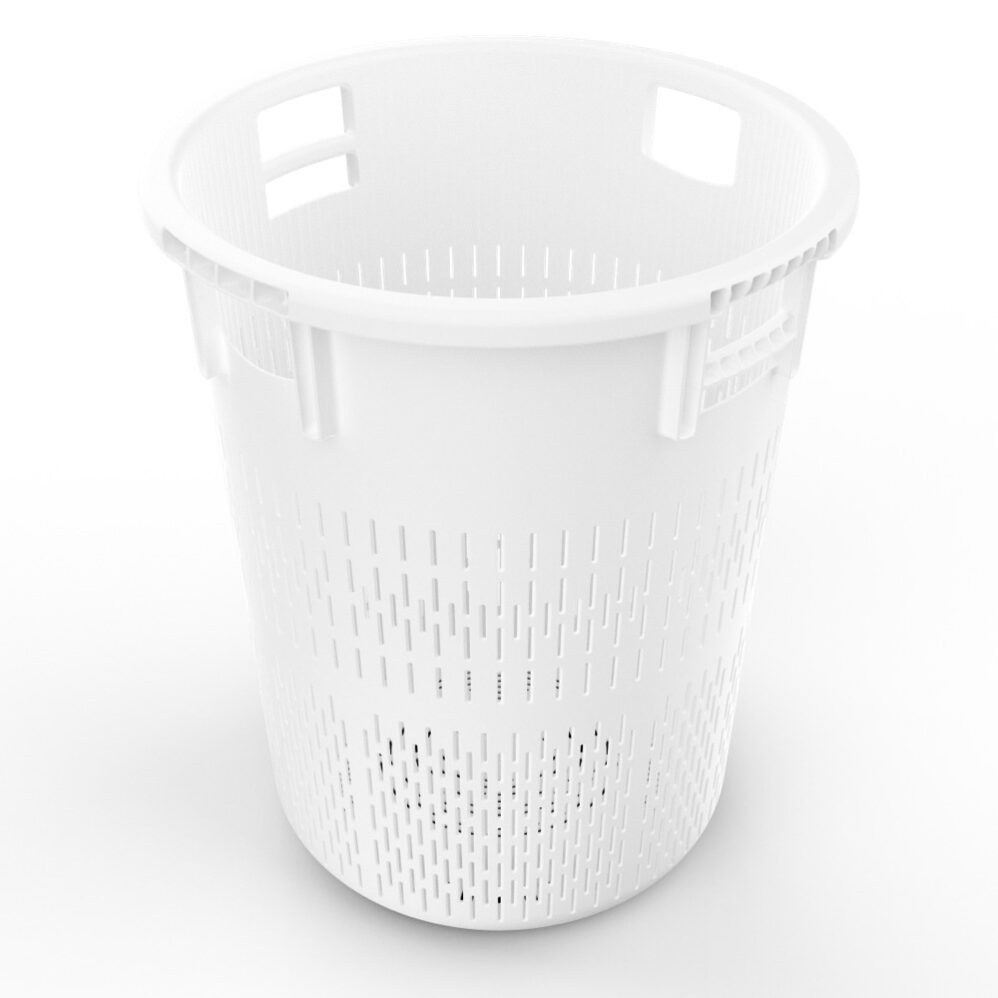

Cyclone Basket
The Cyclone has been developed in partnership with Intercrate for Heinzen’s SD50LT Spin Dryer with molded-in holes, strength, ergonomic improvements and features metal detectable FDA material.
Features
- Tough: Built using impact-modified material. Extra thick sections on the top rim, bottom lip, and handles.
- Ergonomic: Hand-holds are higher and closer together than previous models, extreme drainage in base for rapid water flow, weight reduction grab points on underside, smooth exterior, and shoulder-friendly bottom edge for overhead carry are all now ergonomic improvements for your workers.
- Rapid drainage: More open area with molded-in holes means more productive use of your machinery and improved draining, as well as drier product.
- Molded-In Holes: The Cyclone has 340 bottom and 642 side molded-in holes for a total of 982 holes that do not need to be drilled and deburred by your crew. Molded-in holes offer your quality program more consistency than hand drilled holes.
- Traceable: Proven metal detection technology makes plastic debris detectable.
- Color: Current metal detecting options are white, blue, yellow, green, and red.
- Sanitation: The Cyclone can be steam cleaned or cleaned with hot water (unlike polyethylene).
Specifications
- 13 layers stacked empty—4 stacks/pallet
- 52/pallet—93” high on pallet
- Nesting increment: 5”
- Pure white available for non-metal detecting only
- Tare weight: 7lbs.
- Internal volume: 32gal.
Products
Lettuce | Celery | Broccoli | Peppers | Spring Mix | Onions | Spinach
3620 Sd300osm Open Sanitary Spin Dryer
Introducing the newest, most advanced, sanitary dryer available on the market today!
Features
- Innovative Channelized™ Stainless Steel Construction
- Direct drive lower bearing assembly, with modular construction for easy Preventive Maintenance and Sanitation
- Urethane lined spun top lid and open-style lid frame
- HDPE roto-molded safety covers with safety inter-locks swing out to allow access to dryer interior
- Side mounted operator push button station included
- Trough system allows for water reclamation
- Sloped top hygienic enclosures for pneumatic system and operator station
- Drop-In Replacement for the SD300ESM Spin Dryer
Specifications
- 7HP, 900RPM; SS Electric motor
- Stainless Steel Lower Bearing Assembly
- Cycles per hour: 14.29
- Dried product weight capacity: 265lbs.
- Capacity: 1000-3000lbs. depending on product and density
- Basket Volume: 14.76ft³
- Basket Weight: 190lbs.
Products
Lettuce | Romaine | Broccoli | Carrots | Spring Mix | Onions | Spinach | Cabbage
2528 Baskets and Basket Carts
For over thirty years, the industry benchmark for safe, fresh-cut produce centrifuge material handling, includes the Heinzen SD300 Basket & Carts.
Basket
- Patented, industry leading, safe ’bottom dump’ design does not require inverting baskets to unload. Material is loaded from above, centrifuged, then unloaded through the bottom interlocking doors.
- Easy access, tool-free unlatching, latching, opening and closing of bottom doors.
- All Stainless Steel construction, fully welded, finished and blended to hygienic standards for direct food contact.
- Integrated central lift bar and flanged upper ring for both manual and automated basket handling capabilities.
- Maximum access for regular sanitation and inspection.
- Provides ideal temporary storage capacity and mobility for extra work-in-process flexibility during the production shift.
- Works with all Heinzen SD300 Series Centrifuges
Basket Cart
- Provides simple, stable, robust, low profile basket handling for Heinzen SD300 bottom-dump baskets.
- All Stainless Steel construction with full wash-down components.
- Maximum access for regular sanitation and inspection.
- Stackable for storage to minimize required floor space.
Product
Lettuce | Celery | Broccoli | Peppers | Spring Mix | Onions | Spinach | Whole Heads
SD300 BARREL BANDS
Now available through Heinzen, allowing for enhanced product segregation during production!
Features
- Easily placed on the Heinzen SD300 barrel for compliance with Separation of Functions
- Solid Urethane band which is easily removable for change-overs and sanitation
- Visual color coding for operations running Organic and Conventional items side-by-side
- Enhanced visibility for Test-and-Hold product
Options/Specifications
- Available in a variety of colors to aid in compliance with existing color coding programs
- Part Number: 240064
Available Colors Red | Orange | Yellow | Green | Blue | Purple | Gray | White | Black
OPEN SANITARY DRIVE MOTORS
Designed with Food Safety and Maintenance in mind. Available exclusively through Heinzen Manufacturing!
Features
- Hygienically designed to be mounted in a vertical position
- Stainless Steel Construction
- Compact and shorter than traditional motors allowing for easier cleaning and maintenance from the floor
- Heavy-Duty Spline Drives
- Mates to existing Lower Bearing Assemblies
- Higher Energy Efficiency
- Lower-Cost compared to existing solutions
Options/Specifications
- 7hp, 900RPM, 9.0amp, TENV, IP66
- Dual Voltage (230/460), Inverter Duty
- Pre-Installed Breather Valve
- Pre-Installed SS Adaptor, 6’ of Cable
- Silicon-Filled Junction Box
Product Applications SD30OS Dryer | SD300OSM Dryer
3600 Sd300os Open Sanitary Spin Dryer
Introducing the newest, most advanced, sanitary dryer available on the market today!
Features
- Innovative Channelized™ Stainless Steel Construction
- Direct drive lower bearing assembly, with modular construction for easy Preventive Maintenance and Sanitation
- Urethane lined spun top lid and open-style lid frame
- HDPE roto-molded safety covers with safety interlocks swing out to allow access to dryer interior
- Side mounted operator push button station included
- Trough system allows for water reclamation
- Sloped top hygienic enclosures for pneumatic system and operator station
Specifications
- 7HP, 900RPM; SS Electric motor
- Stainless Steel Lower Bearing Assembly
- Cycles per hour: 14.29
- Dried product weight capacity: 265lbs.
- Capacity: 1000-3000lbs. depending on product and density
- Basket Volume: 14.76ft³
- Basket Weight: 190lbs.
Products
Lettuce | Romaine | Broccoli | Carrots | Spring Mix | Onions | Spinach | Cabbage
2532 Ab200 Spin Dryer
Introducing the AB200 Centrifugal Spin Dryer, setting the Gold Standard in Auto Batch Drying.
Features
The AB200 is a fully automatic batch system designed for high volume processing. Designed with an emphasis on simple, robust, sanitary construction, the AB200 can process over 9,000 lbs/hr (Spring Mix or Baby Spinach) or 20,000 lbs/hr (Iceberg Lettuce) depending on cycle time and infeed support equipment.
Product transferred into the AB200 is cushioned by a layer of clean laminar airflow, and discharged after drying with the assistance of high volume, low pressure clean air.
A hollow perforated stainless steel drum is designed to provide clean, unobstructed loading and unloading with-out spokes or axles in the product zone.
Triple-sealed oil bath tapered roller bearings provide long life and dependability. The double redundancy offered by a dual motor drive serves as a contingency against downtime. Each drive can operate alone for continued production in the unlikely event of a motor malfunction. A ribbed V-belt drive simplifies and reduces maintenance.
All dryer and process line control parameters can be accessed through simple touch screen interface that can store presets for various products.
Options / Specifications
- Air-assisted product transfer & discharge
- Dual motor drive for redundant operation
- Sanitary design features clean air transfer
- Touch screen interface provides preset programs based on specific product.
- Large Capacity Drum: 44” Dia x 72”L (63.5 cu ft)
Products
Iceberg Lettuce—Shred to Chop | Romaine/Iceberg Lettuce Blends | Carrots | Cabbage | Tender leaf Products
2533 Ab300 Auto Batch Dryer
Heinzen’s fully automated fill, spin and unload drying system, requires no personnel to operate!
Features
- Innovative Channelized™ Stainless Steel Construction
- Modular system designed for expanded product requirements
- Regenerative drive system
- No overhead crane required
- All controls included, photo sensor level control
- Stainless Steel safety interlocked enclosure
- Self-balancing, automatic loading and unloading
- Wash-down construction, full access for cleaning and maintenance
Options/Specifications
- (4) Hanger isolator mounts
- (1) Lower bearing assembly—Tapered roller
- (2) Pivot bearings
- Accessible for cleaning and maintenance
- Standard: single speed
- Optional: dual speed and timer controls
- Product loading and unloading systems for single or multiple units
Product Applications
Lettuce/Romaine | Tenderleaf | Kale | Cabbage | Onions
2525 Sd300esm Spin Dryer - discontinued. replaced by 3620 OSM (Heinzen will continue to support parts and service)
The Industry Standard in Centrifugal Batch Dryers! The SD300ESM is the benchmark by which all others are compared!
Features
- Innovative Channelized™ Stainless Steel Construction
- Electric Driver (adjustable speed/time)
- Sanitary Lid; Bearings and Stiffeners located outside of the product zone.
- Drainable bottom skin of tank for ease of cleaning.
- 40 Second Acceleration Time, 0-800 Adjustable.
- 20 Second Dynamic Braking (adjustable speed)
- Operator Pushbutton Controls included, Remote Panel separate
- Pneumatic Opening and Closing Lid
- Lid Safety Interlock
- Anti-Sling Product Guard
- Positive Alignment of Bearings for Increased Life
- Patented 14.76 cubic-foot Bottom Dump Basket with Stainless Steel Doors
- No Special Footings Required (depending on floor type and thickness)
- Freestanding
- U.S. Patent No. 5 212 389
Options/Specifications
- Electric Drive Motor, 10hp, 1760 rpm
- V-Belt Drive
- Splined Driven Shaft
- Newly Designed Mount Isolators
- Cycles/Hour: 14.29
- Dried Product Weight Capacity: 265lbs.
- Capacity/Hour: 1000-3000lbs. depending on product and density
- Cycles/Hour: 14.76 (ft³)
- Basket Weight 190lbs.
- Cycle times will vary by product and region. Chopped Lettuce used to calculate cycle times.
Products
Lettuce | Cabbage | Romaine | Onions | Spring Mix | Carrots | Spinach | Broccoli
OPEN SANITARY DRIVE MOTORS
Designed with Food Safety and Maintenance in mind. Available exclusively through Heinzen Manufacturing!
Features
- Hygienically designed to be mounted in a vertical position
- IP69K Stainless Steel Construction, fully polished exterior
- No fan or fan cover, eliminating sanitation concern at the non-drive end of the motor
- Fully welded and completely sealed lifting lugs
- Elimination of cavity at mounting foot
- Fully welded conduit box, eliminating leak concerns
- Designed to meet AMI Standards of Sanitary Design
Options/Specifications
- 10hp, 1770RPM, TENV,
- NEMA NOM EFF 92.4
- 12.5amps at 460V
- Pre-Installed Breather Valve
Product Applications SD30OESM
